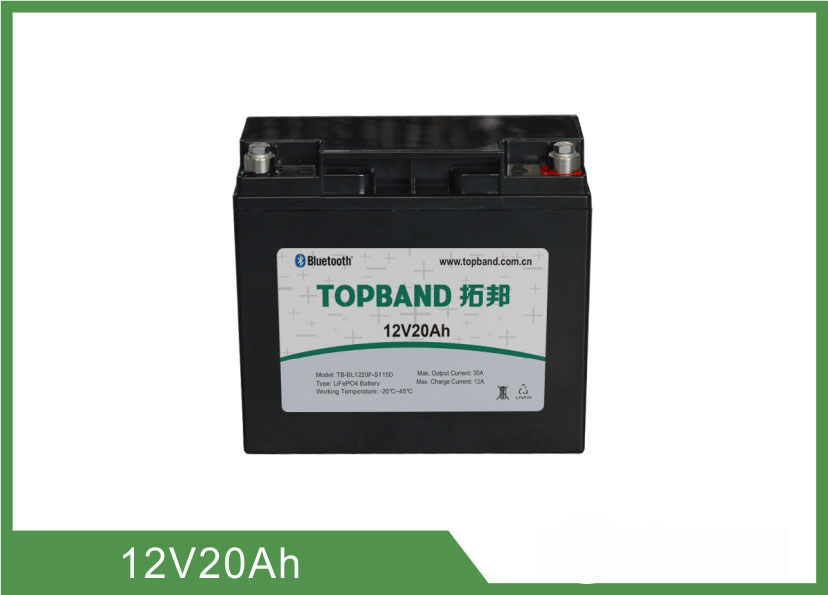

Black 12V 20Ah Bluetooth Lithium Battery 2000 Cycles Life Safety Performance

Product Categories

Shenzhen Topband Battery Co., Ltd

Contact Now

Brand Name : Topband

Model Number : TB-BL1220F-SC-S115D

Certification : ISO9001, IOS14001, IEC

Place of Origin : China

MOQ : 10

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 450Mwh/year

Delivery Time : 2~3weeks for samples; 4~6weeks for mass production

Packaging Details : standard export carton or customized carton

Nominal Voltage : 12V

Typical Capacity : 20Ah

Dimension : 181*76*165mm

Weight : 3Kg

Pulse current : 70A

Maximum charge current : 20A

Cycle life : 2000 cycles @ 100% DOD

Warranty : 2 years

Contact Now

12V 20Ah lithium battery with Bluetooth function , series connection

1. Specification

NO.	Items	Criteria	Remarks
2.1	Rated Capacity	20Ah
2.1	Minimum Capacity	19Ah
2.3	Nominal Voltage	12.8V
2.5	Internal resistance	≤70mΩ
2.9	Maximum charge current	20A
2.10	Standard discharge current	15A
2.11	Maximum discharge current	30A/Continuous
2.12	Pulse discharge current	70A/Continuous for 3s
2.13	Discharge cut-off voltage	80V
2.14	Dimension	Length: 181±3mm
		Width: 76±3mm
		Height: 165±3mm
2.15	Weight	Approx: 3.0Kg
2.16	Operating Temperature	Charging:0～45℃
		Discharging:-20～60℃
		Recommended operating temperature:15℃～35℃
2.17	Self-discharge rate	Residual capacity:≤3%/ month;≤15%/years
2.17	Self-discharge rate	Reversible capacity: ≤1.5%/ month;≤8%/ years
2.18	Storage Temperature & Humidity Range	Less than 1 month:-20℃～35℃,45%RH～75％RH
		Less than 3 months:-10℃～35℃,45%RH～75％RH
		Recommended storage environment: 15℃～35℃,45%RH～75％RH
Long time storage: If the battery need be stored for a long time, the voltage should be 36V(50%SOC), and stored in the condition as storage proposal. It need at least one charge & discharge cycle every six months

2. Advantages:

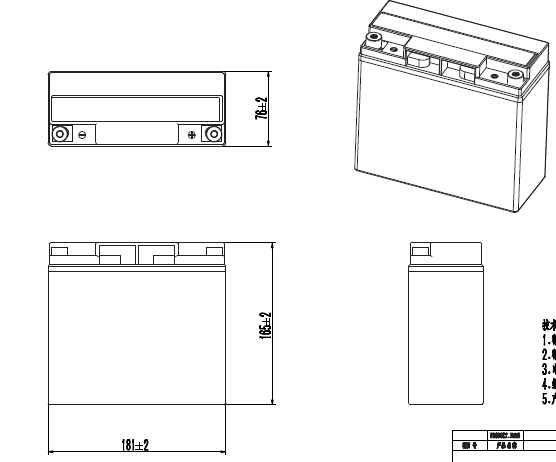

3. Dimensional Drawing
Black 12V 20Ah Bluetooth Lithium Battery 2000 Cycles Life Safety Performance

4. Storage & Transportation

* Based on the character of cell, proper environment for transportation of LiFePO4 battery pack need to be created to protect the battery.

* Battery should be stayed in the ware house -20℃～35℃ where it’s dry, clean, shade, and well-ventilated.

* The battery should be stored in 50% SOC during transportation.

* The battery need to be charged every 6 months if out of use
* Keep the battery against dropping, turning over and serious stacking during loading.

5. Our Services

1. Professional OEM & ODM service
2. Outstanding design and R&D team
3. Best quality control
4. Small quantity order / trial order accepted
5. Excellent quality and 24 hours after-sales service
6. Quality guarantee 2 years varies from different series
7. Diversified payment terms TT, L/C for your selection
8. Protection of your sales area, ideas of design and all your private information
9. Welcome to inquiry, welcome to visit our factory

Black 12V 20Ah Bluetooth Lithium Battery 2000 Cycles Life Safety Performance
