Factory Supply UPS Replacement Batteries 12V 24Ah Rechargeable Lifepo4 Battery
1. The Features of 12V 24Ah Rechargeable Lifepo4 Battery
- Output with high efficiency
- Good performance under wide temperature -20-60℃.
- Good safety performance
- Long cycle life time, over 2000 cycle times(100%DOD).
- Fast charging.
- Low self-discharge.
- Evironment friendly.
*pls kindly note this model is not support series connection between packs, if need Series Connection,
pls inform us in advance, thank you!
2. The Specification of 12V 24Ah Rechargeable Lifepo4 Battery
| 1 | Nominal Voltage | 12.8V |
| 2 | Normal Capacity | 24Ah |
| 3 | Internal Resistance | ≤50mΩ |
| 4 | Battery operation charge temperature range | 0~45℃ |
| 5 | Normal charge voltage | 14.6±0.1V |
| 6 | Recommended float charge voltage(for Standby use) | 13.8±0.1V |
| 7 | Allowed MAX charge current | 12A@Battery initial Temp 25±5℃ |
| 8 | Recommended charge current | ≤10A |
| 9 | Battery operation temperature range @discharging | -20~60℃ |
| 10 | Output Voltage Range | 8.0~14.6V |
| 11 | Allowed discharge current | 30A/30min |
| 12 | Nominal energy | 307.2Wh |
| 13 | Discharge Cut-off voltage | 8.0V |
| 14 | Dimension | Length 180±3mm |
| Width 76±3mm |
| Height 166±3mm |
| 15 | Weight | Approx. 3.0±0.5Kg |
Note:
If above specification can't satisfy you, pls email us or send inquiry directly with your detailed specs.
like Application, Continous working current, peak discharge current(eduration time), Series Connection,
Communication, size requirement, housing material, etc.
The more details you offer, the more professional service we could provided.
If you have large projects, Customized model can be always welcome.

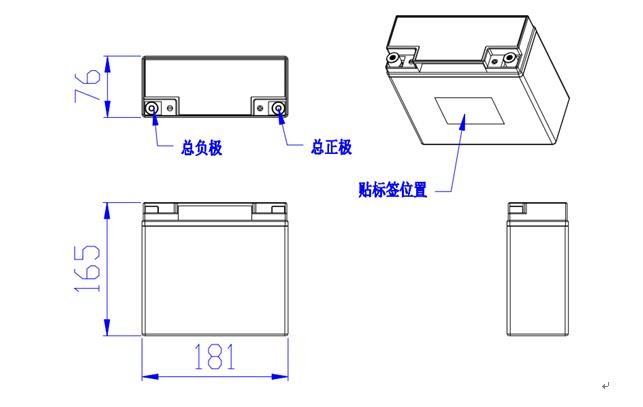

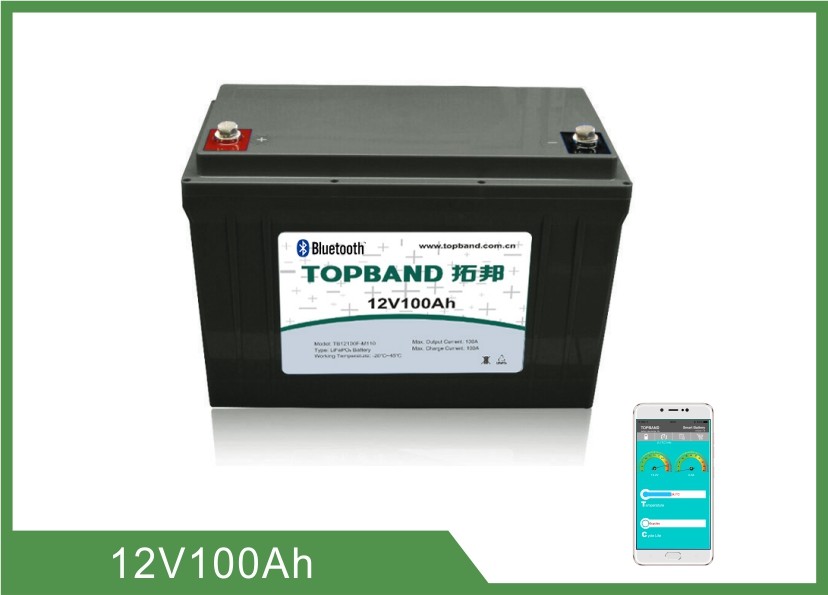

3. The dimension of Lifepo4 12V 100Ah Deep Cycle Battery with Bluetooth Monitoring function
There're other Bluetooth Lifepo4 battery 12V, PLEASE FREELY SEND US YOUR INQUIRY,
SUCH AS 12V 200Ah, 12V 150AH, 12V 100AH Deep cycle batteries for options.
4. Storage & Transportation
- Based on the character of cell, proper environment for transportation of LiFePO4 battery pack need to be created to protect the battery.
- Battery should be stayed in the warehouse -20℃～35℃ where it’s dry, clean, shade, and well-ventilated.
- The battery should be stored in 50% SOC during transportation.
- The battery need to be charged every 6 months if out of use.
- Keep the battery against dropping, turning over and serious stacking during loading
5. The Various Application is widely used in such as UPS Storage,electric golf cart, Automobiles, sailing, Marine and boats,etc.
